Cylinders

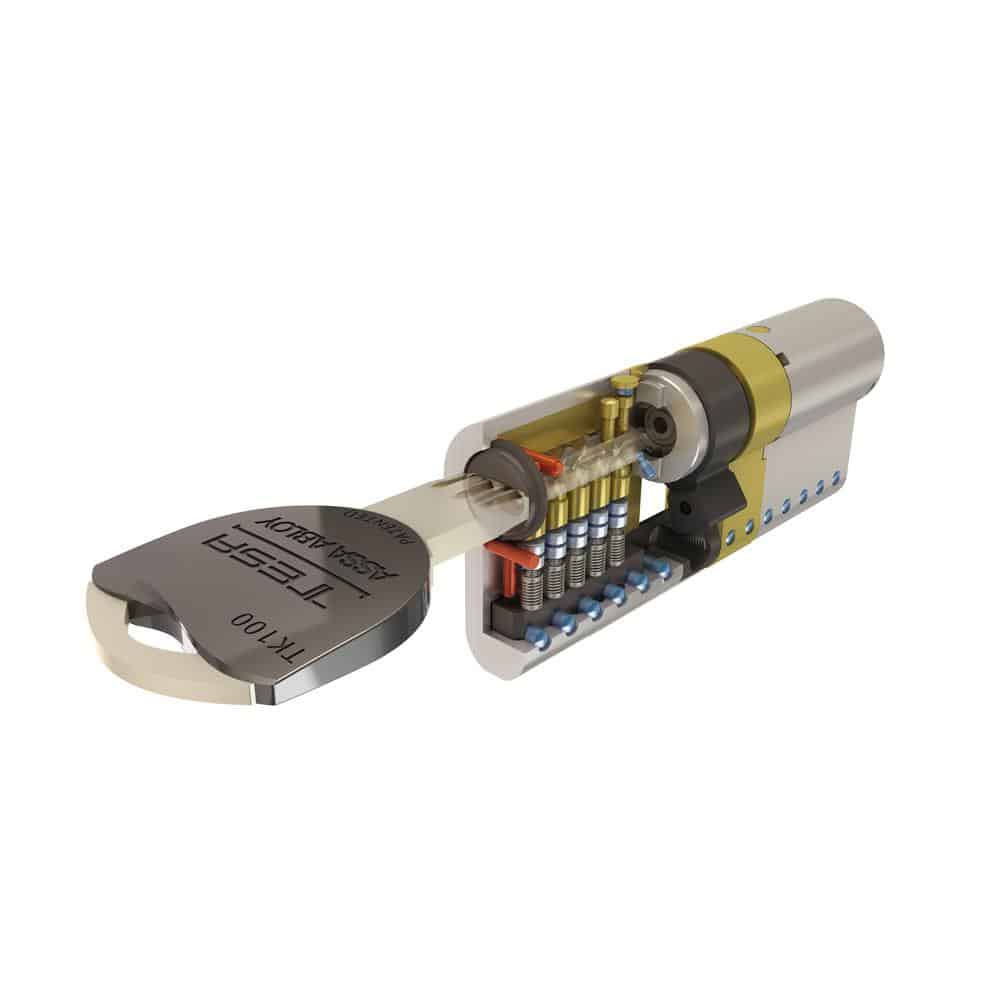

The TK100 is a high-security cylinder with reversible key with 10-pin points. This cylinder integrates a patent for key and cylinder that provides additional security and protection from fraudulent key duplication, since it is necessary to produce a property card in order to receive copies. The TK100 features higher antidrill, antibump and antipick than the rest of TESA's cylinder range. It also comes protected from breakage by a very strong steel bar. It is supplied with alpaca pins, which provides durability over 100,000 cycles. It is a high range solution, as it employs the orbital system of multipoint pins. It comes available in a wide range of sizes and profiles and is supplied with 5 plastic-head alpaca keys. It bears the EN1303 certification, with maximum-security levels in every aspect. Just like the TX80 cylinder, the TK100 cylinder is compatible with access control locks by inserting a RFID chip in its key.

Type of key: Flat, non-duplicable and patented.
» Number of rows : 2
» Number of pins: 10 + 2 security sensors in the key.
» Technology: DROP ORBITAL (TESA Exclusive)
» Combinatory: It reaches way above the degree 6 of the standard.
» Masterkey systems: Superior capacity with no need to use passive pins.
» Resistance to corrosion and temperature: Degree C
» Advanced antibump.
» Top antipick protection.
» Antipick protection way above the maximum degree specified by the European standard.
» Antiextraction rotor.
» Corona pins on rotor front.
» The bridge of the body features preinstalled reinforced steel.
» Resistance: 200,000 cycles.
» Preinstalled double-security clutch.
» 5 narrow-neck keys per cylinder.
» New, ergonomic key design.
» Key duplication and cylinders are protected via ownership card.
» Certified according to the EN 1303 standard.
