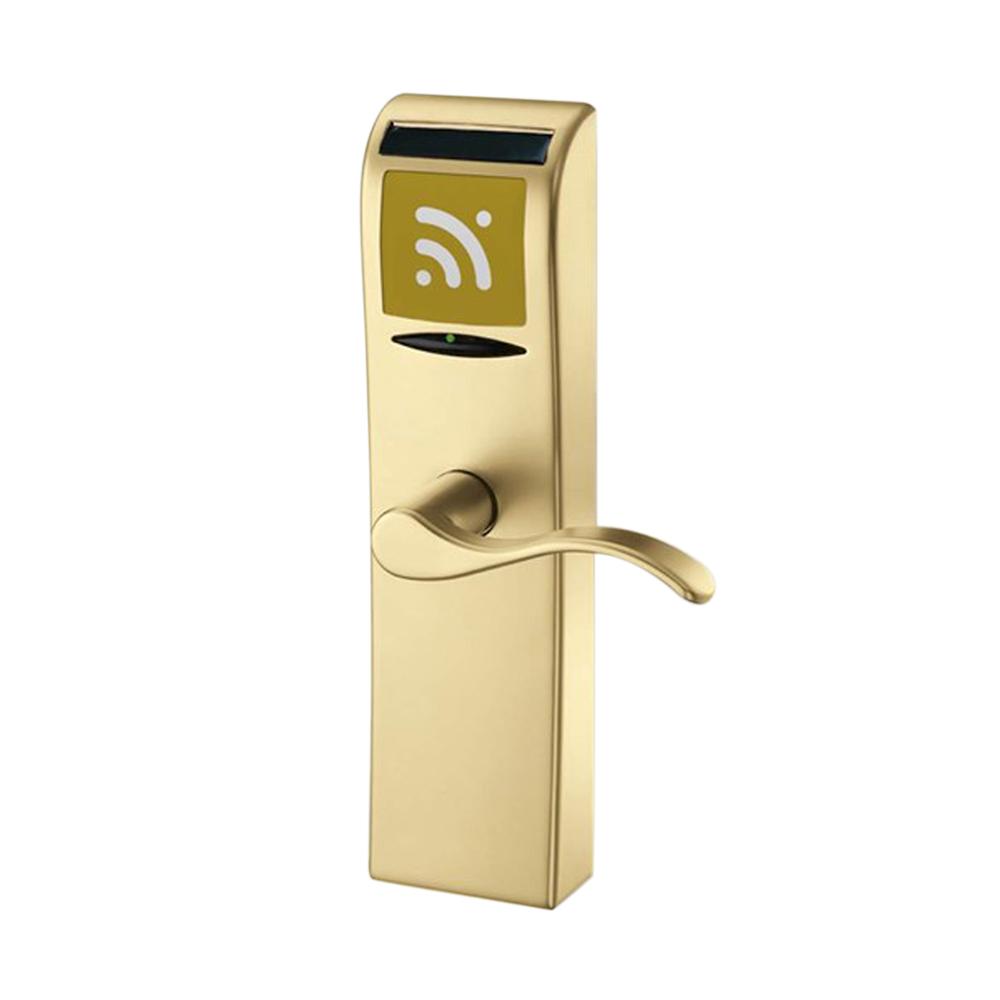

Electronic Lock Tesa Assa Abloy Donna Proximity

Equip your hotel with the most advanced electronic locks with an emphasis on quality and design

Electronic Lock Tesa Assa Abloy Donna Proximity


RFID 13,56 MHz Proximity identification technology: ISO 15693 and ISO 14443A (MIFARE).
Compatible with NFC mobile phones (Near Field Communication) .
High storage and protection capacity.
High transmission speed.
Security: the information is protected and encrypted.
Possibility of multi-application with other hotel devices.
Reading and writing Locks (R/W).

  • Non volatile memory. Information is not lost when the battery is off or during the battery change process.
  • Latch with 17 mm projection, therefore above maximum degree established by the EN UNE 12209 standard.
  • Optional: ADB lock with automatic deadbolt projection: double security.
  • The handle turns freely when access is not authorized.
  • Optional: hidden or seen emergency cylinder.
  • Optional: with keypad. -EXTREME (optional): waterproof model capable of resisting all climatic conditions. The lock is protected by sealing joints; its parts come with an anticorrosion finish, tropicalized circuits, an internal draining system, CM, CR, PVD finishes, etc.


Reading module:

  • Identification technology: Reading and writing RFID 13,56 MHz contactless chip.
  • Activation mode: The lock is activated without a previous contact
  • Low consumption.
  • Reading distance: 10 mm with standard tags.
  • The jacks connected to the portable programmer is in the battery module.
  • Four 1,5V alkaline batteries like the LR6 AA.
  • Estimated duration of the batteries: 3-4 years (30.000 cycles).
  • Batteries easily changed without having to dismantle the lock.
  • Humidity: Up to 85% without condensation.
  • Temperature: Between 0ºC and 65ºC with alkaline batteries.
  • Fire: The Donna electronic lock is certified by the LICOF as fire resistant for 60 minutes (RF60).
  • Standard width of the door from 35 to 110 mm.
