Μπάρα Πανικού Tesa Assa Abloy Mortice Model Single doors
Περιγραφή

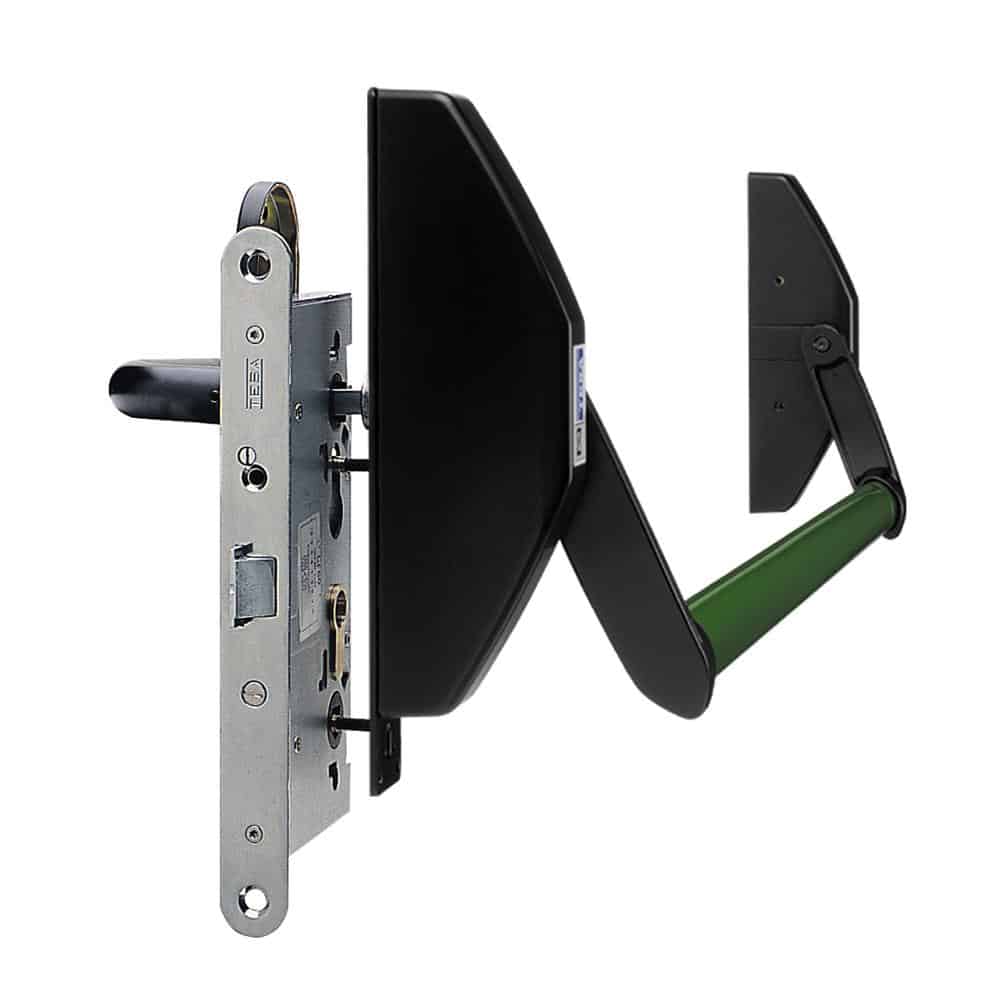

Mortice Model Single doors Panic Exit Device
EN 1125 certificate in the 3 configurations: 1970 + CF60T,1970 + 2035T/ 4039T/ 2037F and 19709G9 + 2230PA / 2240BA.
Χαρακτηριστικά
1- Panic device
The box includes:
» 1 oval shape horizontal bar 900 mm in length.
» 1 main support and 1 auxiliary support.
» 1 inner plate (Ref. E1971INNE) to be used only with CF60 lock serie» Assembly instructions and installation template.
» Accessories: - Fixing screws - Screws witch support the horizontal bar. - A plastic hub cap (to be placed with the inner plate) - Squares spindles:
» Panic device with 8 mm follower: - Double screwed square spindle 8/8 + 8/8. Panic device with 9 mm follower: - Double screwed square spindle 9/9 + 9/9.
2. Locks
3. Outside devices
The outside device must be selected depending on the type of lock. Two models are available: one for CF60T lock and the other suitable for 2035T, 2037F and 4039T.
4. Cylinders
Any type of TESA cylinder can be used, facilitating the Masterke-ying. Cylinder length will depend on the lock position and the door thickness.
5. Squares spindles
1970 panic device model include:Panic device with 8 mm follower:
» Double screwed square spindle 8/8 + 8/8. Ref. CD2030S8MPanic device with 9 mm follower:
» Double screwed square spindle 9/9 + 9/9. Ref. CD9X559X67
