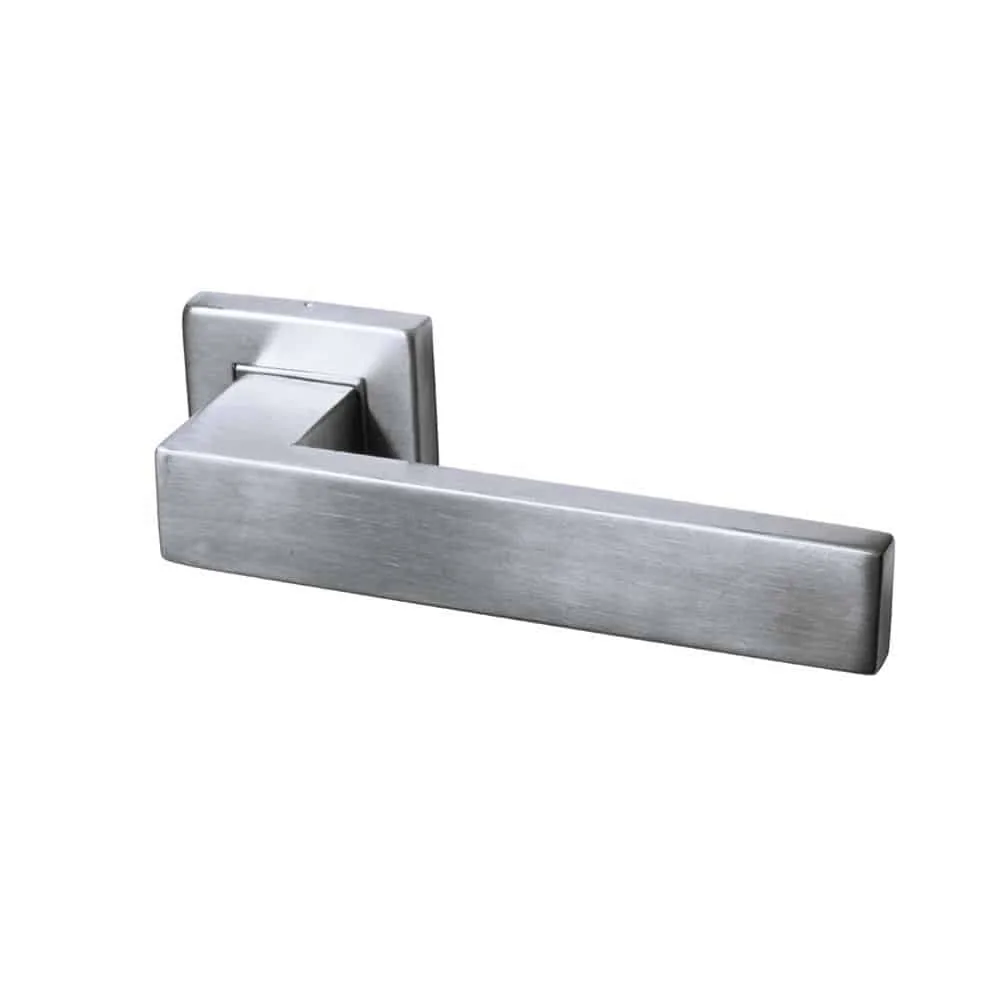

TESA Tundra door handle on a square rose

TESA Assa Abloy

Door handle Tundra AISI 316L

Door handle from TESA’s institutional range in AISI 316L stainless steel.

  • AISI 316L
  • High traffic
Request a quoteFeatures

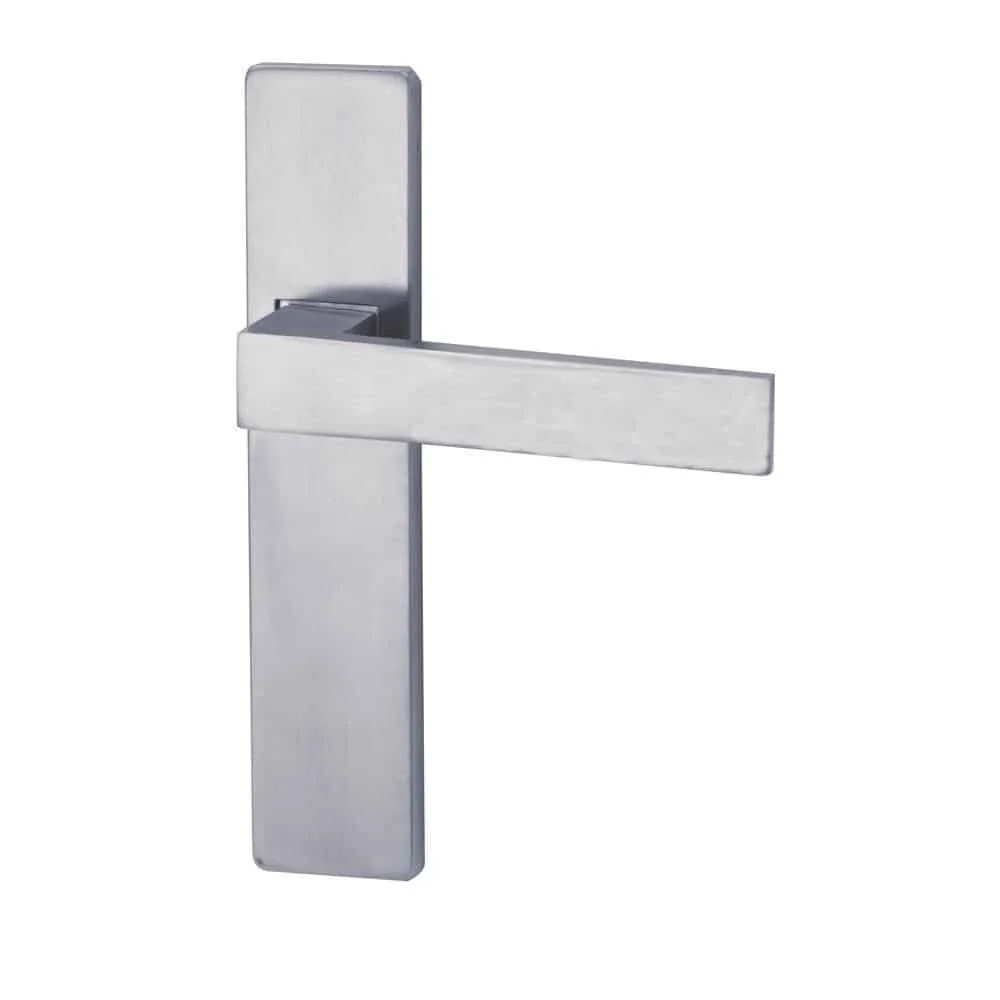

TESA Tundra door handle on a long plate

Image 1 of 2

01Description

Institutional range, in AISI 316L

Tundra is a door handle from TESA’s institutional range in AISI 316L stainless steel, for public and commercial buildings with high traffic and demanding conditions.

AISI 316L is an austenitic steel with molybdenum and a low carbon content (18% chromium, 11% nickel, 2% molybdenum). The molybdenum protects against pitting corrosion, which is common in industrial and coastal environments.

Interested in this product?

Request a quote or contact NAL for more information.

Request a quote
2810 244 947

02Features

Features

Features

  • Return spring in a resin housing, for maximum corrosion resistance
  • Fixing with through bolts, fixed or floating, for high pull-out resistance
  • Concealed screws, for protection against theft
  • Excellent resistance to chemicals
  • Also for fire-rated doors and doors with panic exit devices

Functions

  • Entrance: cylinder hole at 85, 72, 70 or 47 mm centres
  • Privacy: bathroom lock at 85, 72, 70 or 47 mm centres
  • Passage

From the TESA catalogue

  • Material: AISI 316L stainless steel
  • Versions: on a rose, on a long or rectangular plate, on a square plate
  • Spindle: 8 × 105 mm
  • Standards: UNE-EN 1906; above the highest corrosion resistance grade of UNE-EN 1670
