TESA i-volution electronic lock on a white door, next to a hotel bed

TESA Assa Abloy

Electronic lock i‑volution

Minimal design and cutting-edge technology for the most demanding projects.

  • Smartphone (Openow)
  • RFID card
  • Online / wireless
  • Read & Write
Request a quoteTechnical details

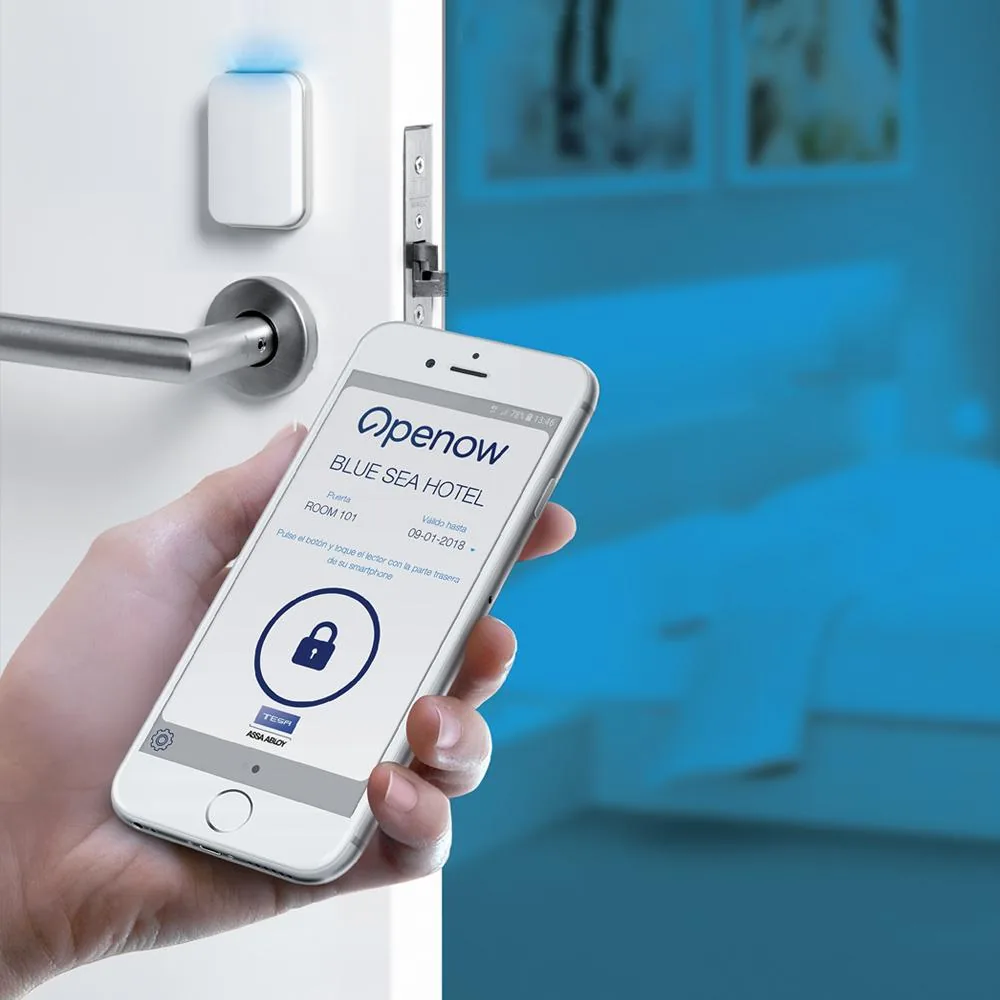

Openow
Opens with a smartphone
IP56
Protection rating
RF60
60-minute fire resistance

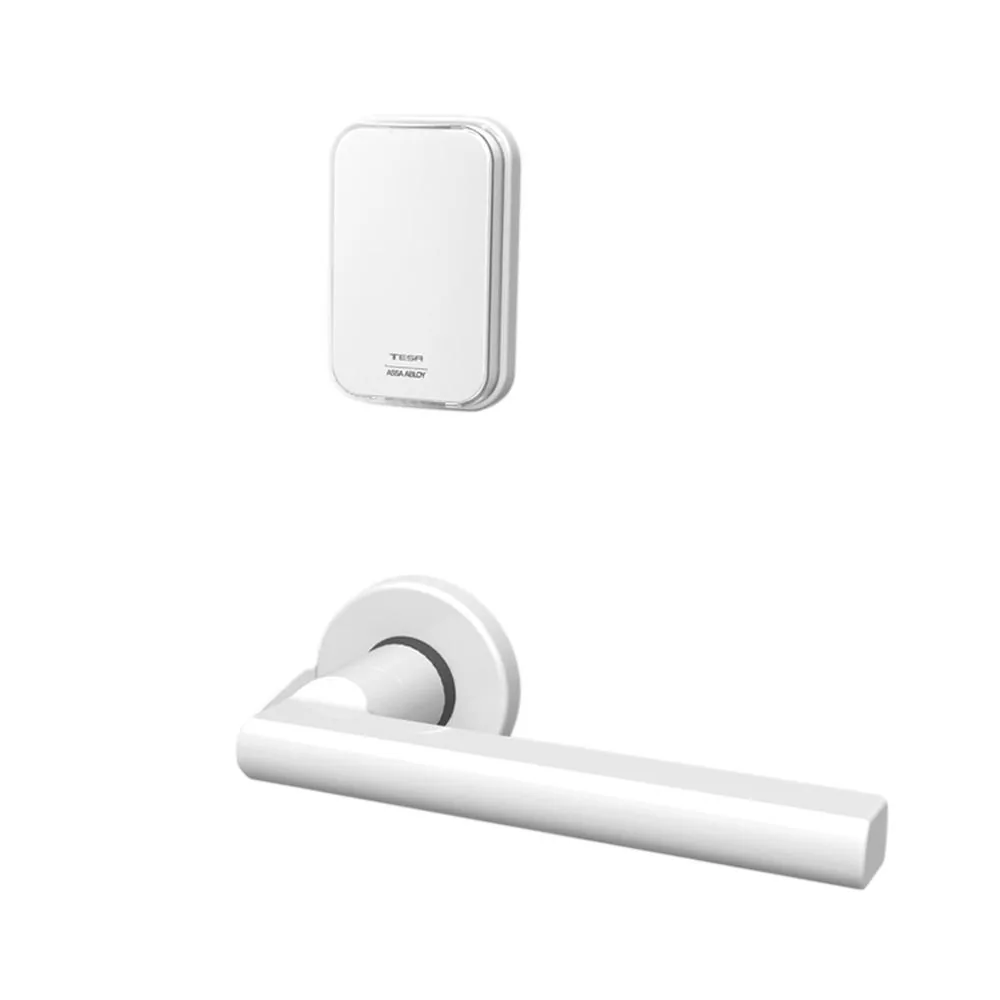

TESA i-volution electronic lock in a white finish

Image 1 of 4

01Description

When design and technology create something unique

TESA Assa Abloy offers innovative solutions tailored to the needs of today’s market. The result of this research is the i‑volution electronic lock, created for the most demanding projects, where minimalist design and cutting-edge technology are the priority.

One platform, TESA Hotel, and two systems: Read & Write or wireless connection, with an easy upgrade to a wireless online model.

Interested in this lock?

Request a quote or contact NAL for more information.

Request a quote
2810 244 947

02Features

Features

Key features

  • Advanced technology
  • Opens with a smartphone
  • Minimal design
  • Secure, encrypted communication
  • Full remote control
  • Wide range of handles and finishes
  • Collection of the events stored in the locks
  • Battery status monitoring
  • Access changes without updating the lock
  • New user registration without updating the lock
  • Easy card cancellation

Full door control

  • Internal sensors that check whether doors have been left open
  • Monitoring of intrusions and improper closing
  • Logging of emergency openings

Identification technologies

  • RFID: MIFARE 14443A, with protected and encrypted card data
  • Opening with a smartphone (BLE technology): Openow app
  • Remote opening via the internet: TESA HOTEL app

03Specifications

Technical details

For any technical questions, the NAL support line is on 6944 705 705.

Reader unit

  • Identification technology: contactless RFID chip, Mifare Classic or Ultralight, 13.56 MHz
  • Blue and red LED indicators
  • Buzzer for signal confirmation
  • Low battery indication (in real time via the wireless system)

Control unit

  • Non-volatile memory (1,000 openings)
  • 30 time shifts
  • 20 status changes in operating mode (block, free access, etc.)
  • 255 calendars, automatic daylight saving time (DST) changeover
  • 1,500 users

Battery

  • Three AAA LR03 1.5 V alkaline batteries
  • Estimated battery life: 105,000 cycles (wireless model) and 80,000 cycles (Read & Write model) or approximately 3 years on standby
  • Batteries are easily replaced, from inside the room only, without dismantling the lock

Lock

  • Automatic locking: 2.54 cm deadbolt throw (AAA norm)
  • The clutch is motor-driven and engages the outside handle. When the lock is locked, the outside handle turns freely
  • Panic function: the inside handle opens the door even when it is locked and electronic privacy has been activated
  • Fits doors from 30 to 110 mm wide

Operating conditions

  • Humidity: up to 85% non-condensing
  • Temperature: outside from −20 °C to 70 °C, inside from 0 °C to 50 °C
  • Fire: 60-minute resistance, RF60 certification (EN 1634)

Certifications

  • CE (EMC, R&TTE)
  • RoHS, REACH, WEEE
  • IP56
  • EN 14846
  • EN 12209
  • RF60

04Video

Videos and installation guides

  • i‑volution installation guide

  • Installation with an emergency cylinder

  • Installation with cover plates

  • Installing the i‑volution Wireless

Videos load from YouTube when you press play.
